Coherent Verdi CW Laser Family

Providing high-stability TEM₀₀ CW power up to 18 W at 532 nm, the Verdi is ideal for a wide range of applications including semiconductor inspection, annealing, holography, and Ti:Sapphire pumping.

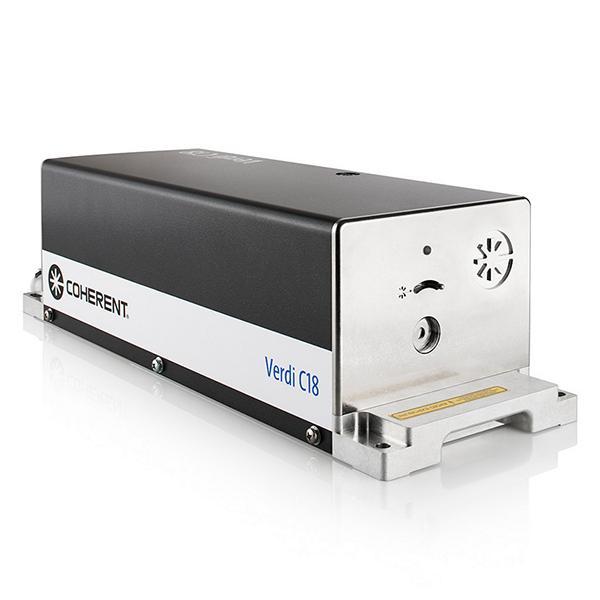

The new Verdi C is a high performance CW laser providing up to 18 W at 532 nm. The laser head, power supply and controller are integrated into a single compact package - 60% smaller than the Verdi G ! - for ease of integration in both research and industrial applications.

Use the OPSL-based Verdi G series and Verdi C series for most applications. Use the DPSS Verdi V series for applications requiring >5 W single frequency. Output noise for most models is <0.02%.

OPSL technology enables:

• No thermal lensing - OPS chip allows power to be changed without affecting beam parameters
• No "green noise" - lowest RMS noise spec <0.02% (from 10Hz to 100MHz) with OPS chip's short upper state lifetime
• Simplified optical cavity and system design with fewer components makes it 50% in footprint compared to systems from other suppliers
• Wavelength flexibility and power scalability - offers future path to new wavelengths and higher power
• State-of-the-art AAA™ pump diode material
• Features PermAlign™ technology
• Lower cost of ownership
