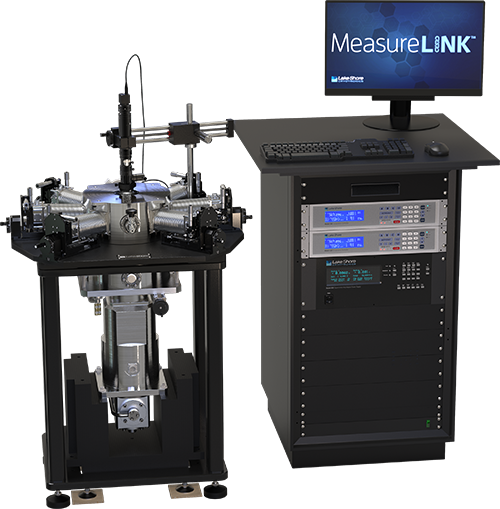

Lake Shore CRX-VF Probe Station (Cryogen-free)

The Model CRX-VF is a cryogen-free, closed-cycle refrigerator probe station enhanced with a 2.5T vertical field superconducting magnet. It performs CV, IV, microwave and electro-optical probing, plus out-of-place vertical field superconducting magnetic measurements. Researchers can use the CRX-VF for performaing Hall effect measurements and testing magneto-transport parameters. It is designed to enable true 90° wafer probing on wafers up to 51mm (2") in diameter. The sample is maintained at elevated temperature during cool-down, reducing the potential for condensation, a critical requirement for measuring organic materials.

Features:

• Cryogen-free operation
• Allows unsupervised cooldown
• Standard probing plus out-of-plane vertical field superconducting magnetic measurements
• True 90° probing
• Customisable up to 3 T with specialised probes
• Customisable to make Hall measurements
• THz probe arm option for precise on-wafer contact probing of millimeter wave devices at THz frequencies (75 GHz and up)
