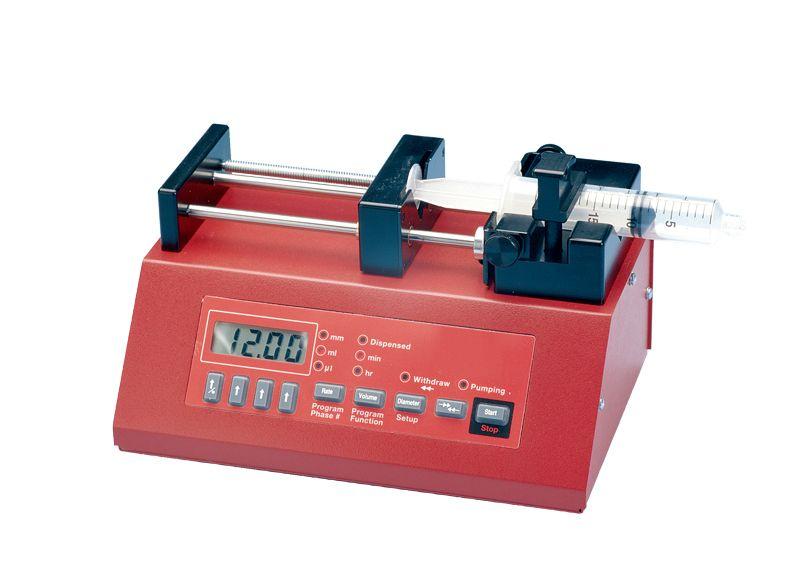

WPI Aladdin Programmable Syringe Pump

The Aladdin pump series arguably offers the best VALUE for any syringe pump on the market.

These pumps are available in single, dual, 4, 6 and 8 syringe capacities. Although it is one of the most cost-effective pumps available, the Aladdin pump series boasts a versatility that is unmatched in its price range with features typically found only on pumps costing more than twice as much.

Features:

• Cost-effective
• Rich command set
• RS-232 and TTL control
• AL-1000 syringe pump accepts plastic syringes up to 60mL and selected glass micro syringes from 0.5 - 500µL
• Infuse/Withdraw pump (AL-1000) or Infuse only (AL-300)
• Displays total colume dispensed in mL or µL units
• Programmable, economical, versatile
• Up to 100 pumps can be daisy-chained together via RS232 network

The Aladdin series provides the capability to both inject and withdraw. These pumps can be used for manually triggered injections, but also have the capability to be programmed in multi-step pumping sequences without the requirement for a computer. Even so, this series also has both RS-232 and TTL inputs for external control and status feedback to a computer, if desired. The pumps can be daisy chained for multi pump applications involving push/pull protocols or multiple independent channels.

Two Aladdin pumps from WPI, when daisy-chained, are more efficient and affordable than any other dual syringe pump on the market. Two Aladdins (Al-2000) will perform as a dual infusion/withdrawal pump, a double pump for infusing at different rates, a push/pull pump with one infusing and one withdrawing at the same or different rates, two independent pumps, or a master/slave pump. One Aladdin can even control the second for continuous pumping with optional check valve set.Up to 100 pumps can be daisy-chained together via RS232 network.
